Inserito IL 23/5/2008 da AUDIO GRAFFITI SRL di Pandino (CR):

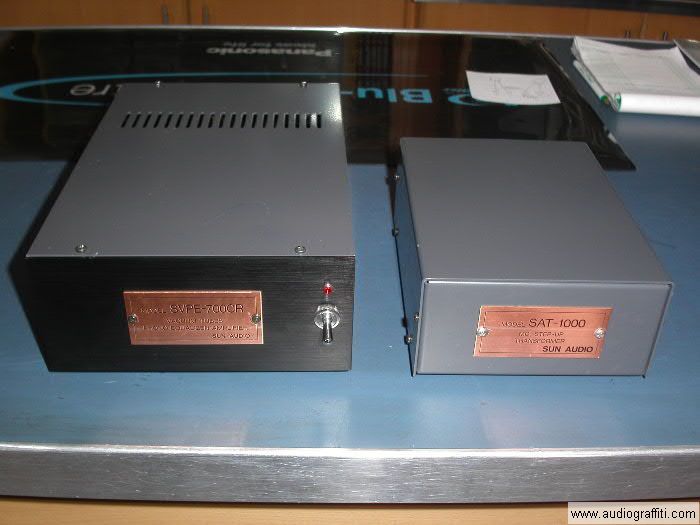

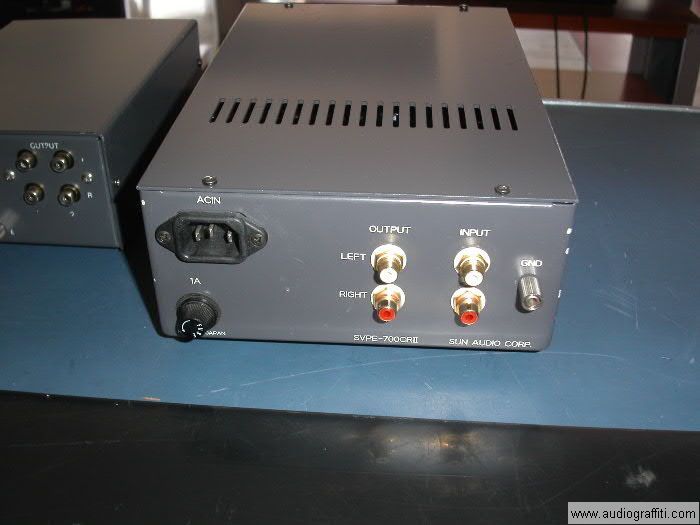

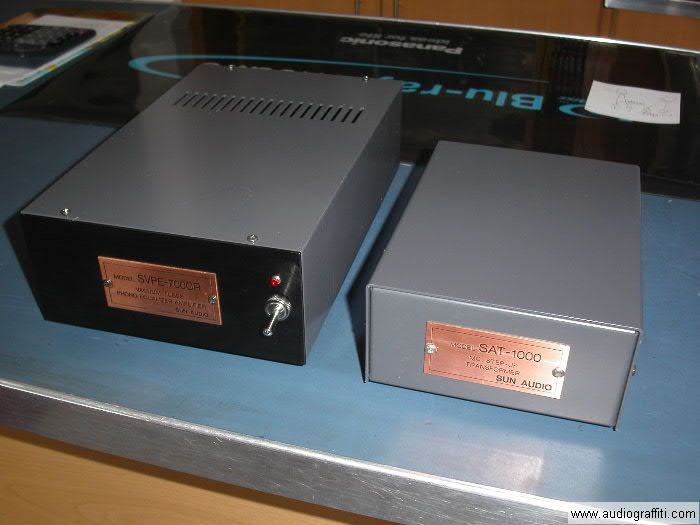

SVPE-700CR II
CR type Phono Equalizer
--------------------------------------------------------------------------------
All of the transformers (Power and Choke) are specially manufactured by Tamura Corp.
A hard-wired is mainly used for the circuit. (Printed Circuit Board is partly used in it.)
SVPE-700CR can be used directly with MM cartridge. (in case of MC cartridge, it requires to use with a step-up transformer.)
Specifications for SVPE-700CR Tubes 12AX7 x2, 6X4 x1
Circuit Design "CR" type - Input Impedance 47kohms
Output Impedance 47kohms - RIAA 20-20kHz (+/-0.3dB)
MAX Output 30V/1kHz - Gain 40dB/1kHz - Noise level less than 1 mV
Power Supply 100, 120 and 220-240 VAC can be accepted at 50/60Hz (must select one) (*1) - AC Connector Equipped built-in noise filter with detachable AC cord - Dimensions W180/H90/D305 mm - Weight 5 kg
