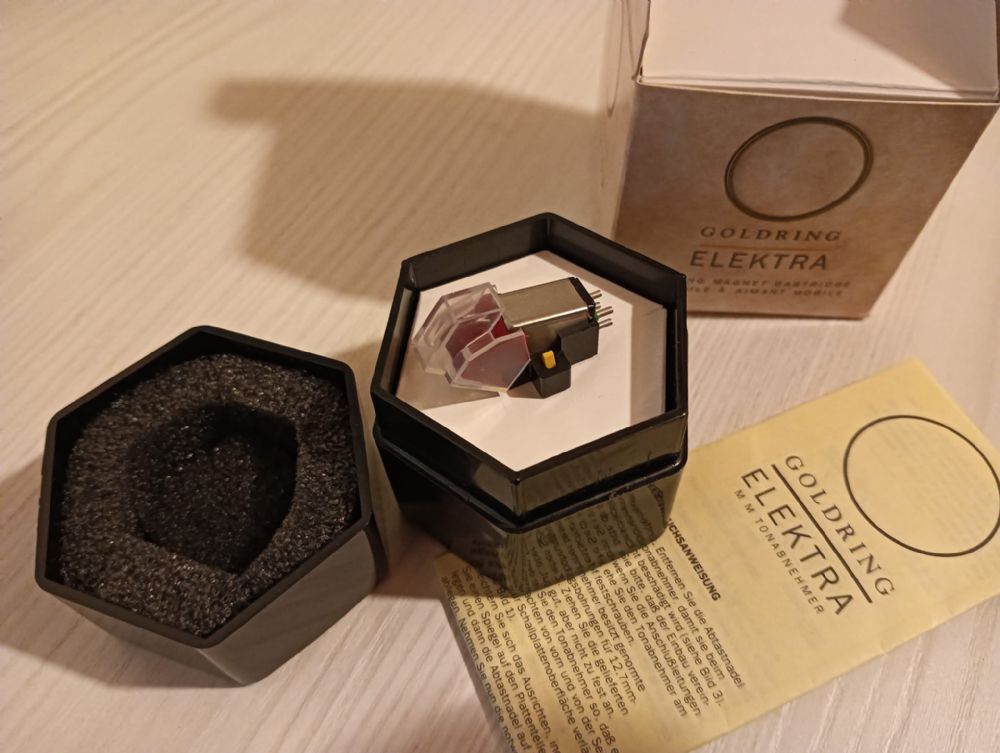

Testina, cartridge Goldring ELEKTRA NOS (New Old Stock) in box
dedicato con viteria di montaggio, istruzioni e specifiche.
Technical specifications:
Frequency Response: 20 Hz-2 0kHz±3 dB
Channel Balance: 2 dB a 1 kHz
Channel Separation: 20 dB a 1 kHz
Sensitivity: 5 mV±2 dB, 1 kHz a 5 cm/sec
Static Compliance: 16 mm/N
Equivalent tip mass: 0.7 mg
Vertical Tracking Angle: 26°
Stylus Radius: Elliptical .0007” x .0003” (18×7)
Stylus Type: Replaceable
Load Resistance: 47,000 Ohm
Load Capacitance: 150-400 pF
Internal Inductance: 560 mH
Internal Resistance: 700 Ohm
Cartridge Weight: 4.2 g
Fixing Centre: 0.5” (12.7 mm)
Playing Weight: 1.5-2.0 g (1.7 g nom.)
