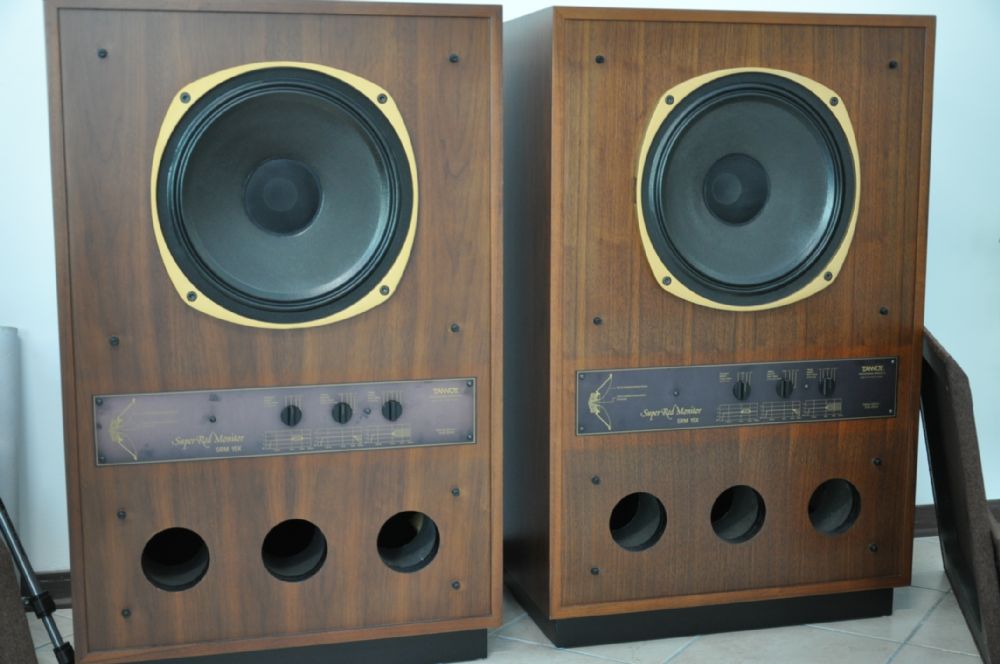

Coppia di diffusori Tannoy in ottime condizioni, mobile in perfetto stato
e tutte le componentistiche originali.
Main Details
Signal Path Passive Hardware
Date Produced 1979-1987
Dimensions 1020mmx650mmx390mm (HxWxD)
Weight 51kg
Frequency Response 52Hz-20kHz ±4dB
Driver 15" Dual Concentric (3809) Ceramic Magnet, PepperPot
Waveguide
Impedance (Nominal) 8Ω
Impedance (Minimum) 5.5Ω
Sensitivity (Anechoic) 94dB/2.83V/m
Sensitivity (Domestic) 97dB/2.83V/m
Recommended Amplifier Power 10-300W
Power Handling (Peak) 500W
Crossover Frequency 1kHz Overdamped 2nd Order Low Pass, 1st Order
High Pass, SyncSource Time Compensation
Phase Response Better than ±20° between 90Hz-18kHz
Apparent Acoustic Source 219mm behind baffle
Dispersion (-6dB Points) 90° at 10kHz
Enclosure Type Bass Reflex
Enclosure Volume 175l
Enclosure Construction 18mm Particle Board, 25mm Baffle
Finish Walnut

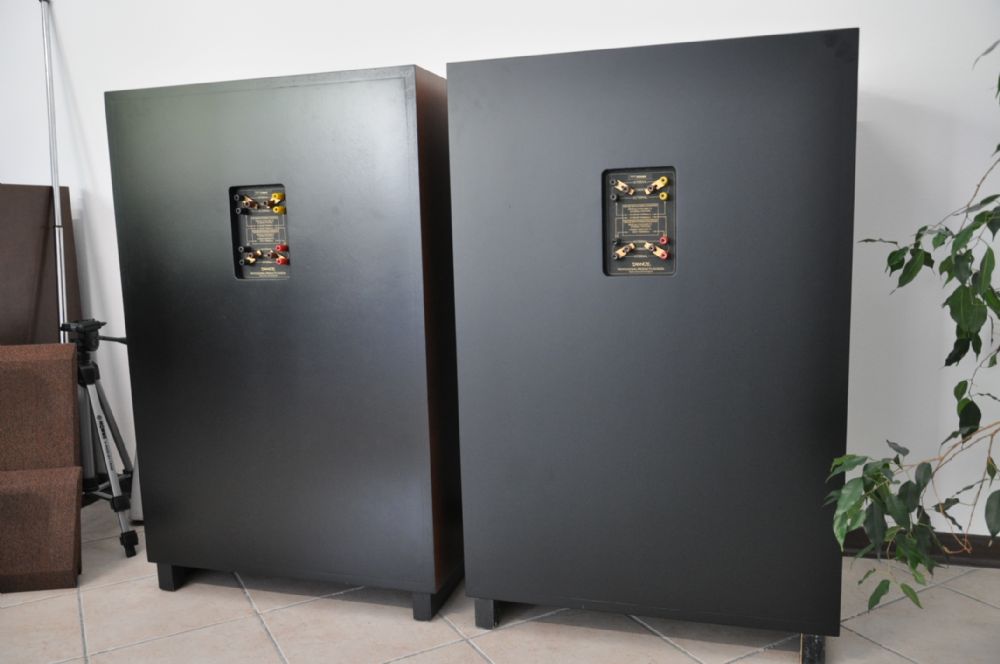

Connections
Input (Single, Bi & Tri ampable) Binding Post
Controls
Treble Energy (Shelving) (3kHz-20kHz) Rotary Switch ±3dB, 5 Steps
Treble Roll-Off (Slope) (5kHz-20kHz) Rotary Switch +0dB/-6dB per
octave, 4 Steps
Presence Energy (1.5kHz-4kHz) Rotary Switch -1.5dB/+3dB, 4 Steps
