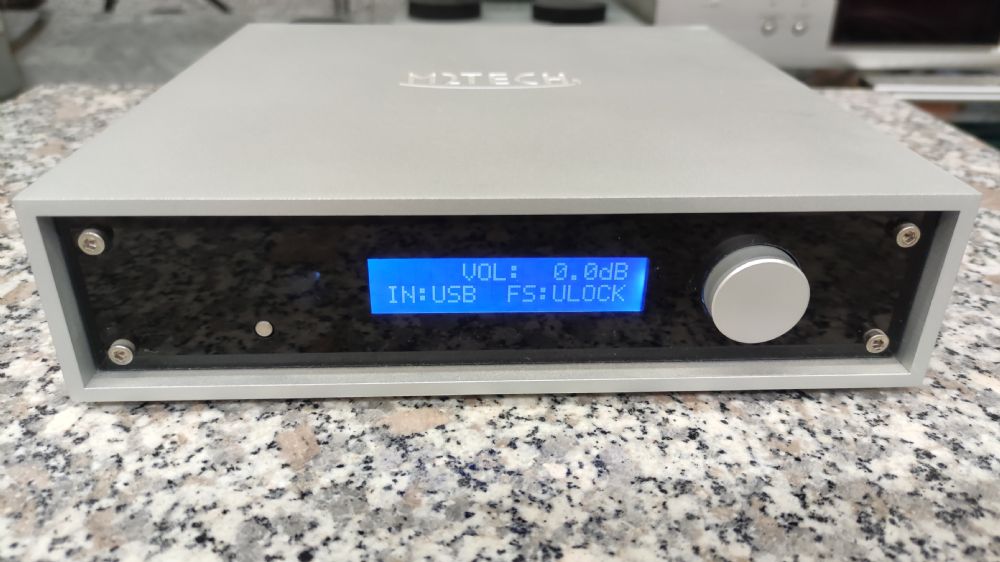

Vendo M2TECH DAC/preamplificatore YOUNG MkIII DSD fornito di
manuale e inballo originale specifiche :
D/A Converter IC: Texas Instruments PCM1795 PCM Sampling Rates –
Asynchronous USB: 44.1, 48, 88.2, 96, 176.4*, 192*, 352.8**,
384**kHz DSD Sampling Rates – Windows Asynchronous USB ASIO:
2.8224 MHz (DSD64) 5.644,8 MHz (DSD128) PCM Sampling Rates –
Coaxial SP/DIF: 44.1, 48, 88.2, 96, 176.4*, 192* kHz PCM Sampling
Rates – Optical (TOSLINK): 44.1, 48, 88.2, 96kHz Total Harmonic
Distortion 0.0008% (-3dBFS, balanced, 1kHz) 0.003% (-3dBFS, single-
ended, 1kHz) Signal-to-Noise Ratio 118dB (0dBFS, balanced, “A”-
weighted) 114dB (0dBFS, single-ended, “A”-weighted) A-weighted, 2
Vrms: Digital Inputs: USB 2.0, SP/DIF Coaxial RCA and BNC, SP/DIF
TOSLINK (optical) Digital Volume Control Steps: 0.5 dB Line Output
Level Unbalanced: 5.4Vrms 0dBFS (balanced, “normal”) 10.8Vrms
0dBFS (balanced, “high”) Line Output Level Balanced 2.7Vrms 0dBFS
(single-ended with adaptors, “normal”) 5.4Vrms 0dBFS (single-ended
with adaptors, “high”) Line Output Impedance: 200 ohms (balanced)
100 ohm (unbalanced) Dimensions 200x50x200mm (W x H x D):
Weight: 1,7Kg
|
