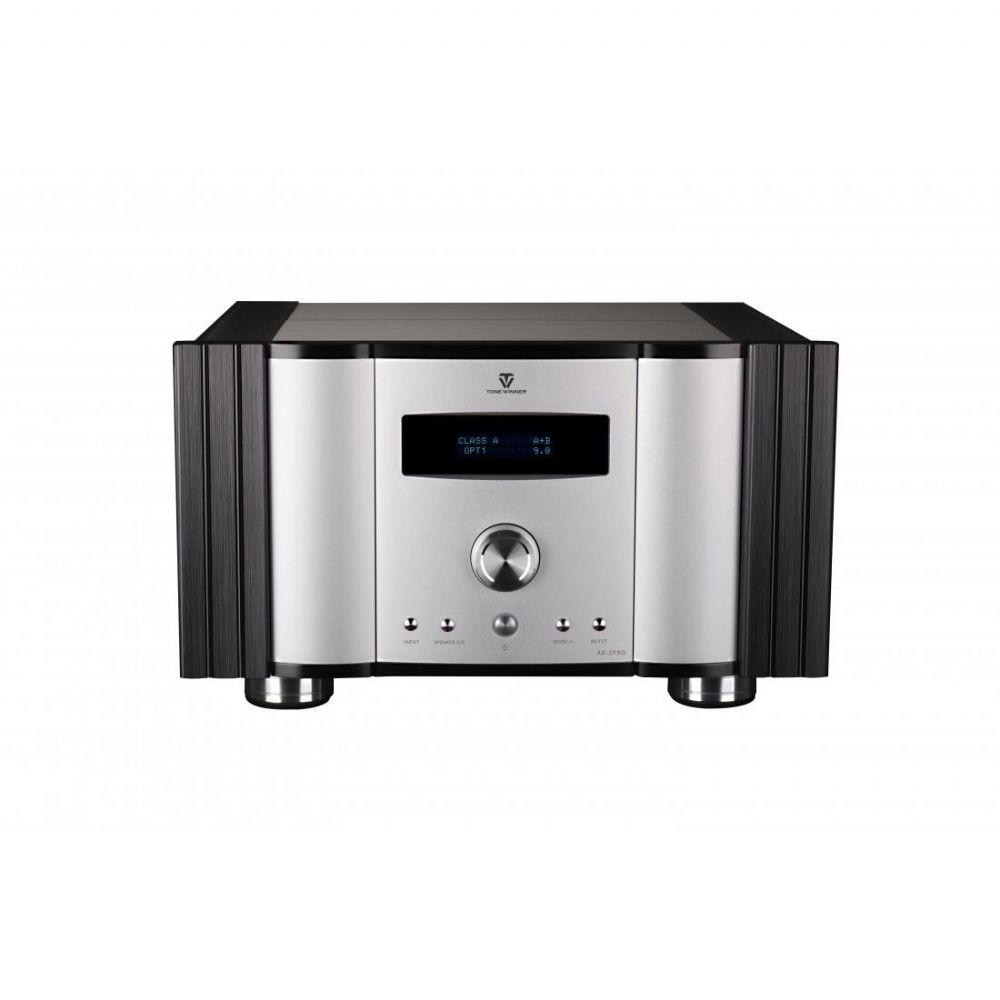

ToneWinner - Integrato Classe A-AD-2PRO+

ToneWinner - Integrato Classe A - AD-2PRO+

Support DSD decoding bases on ES9038 chip, lossless audio formats are
all supported.

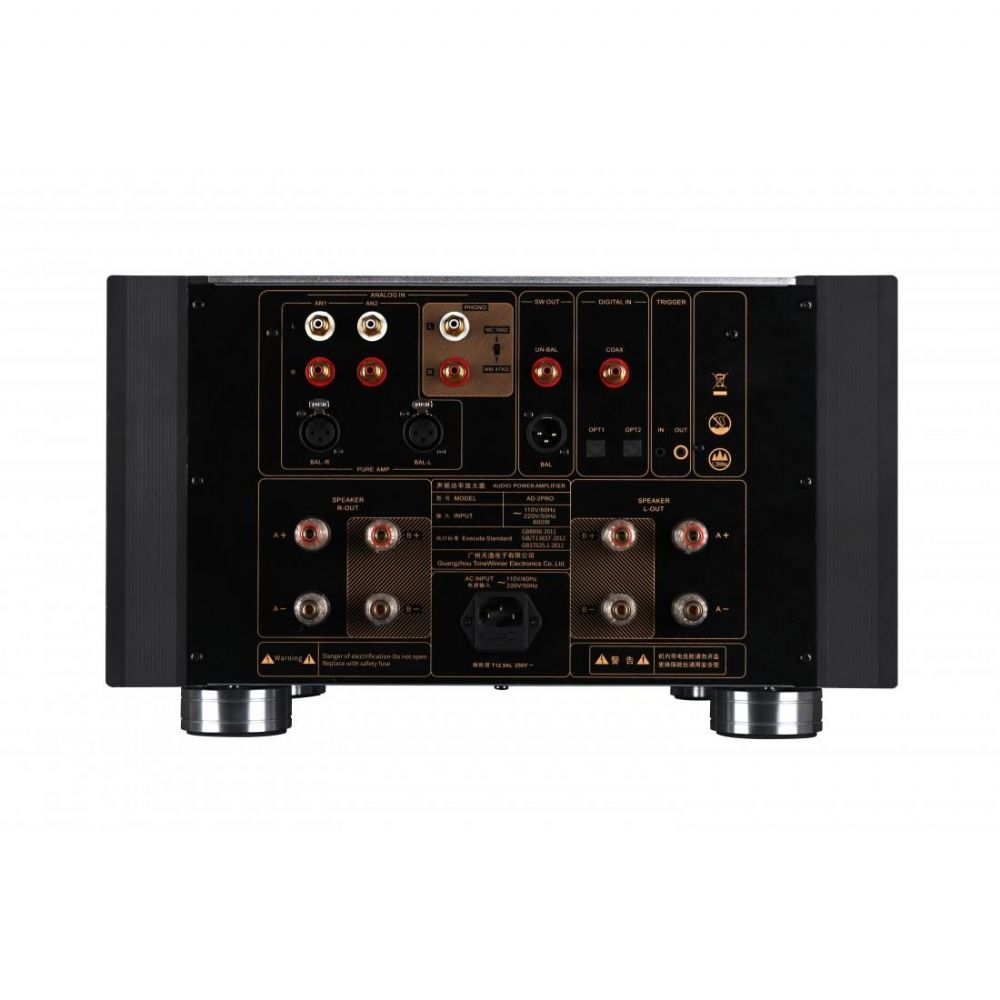

Support kinds of inputs of USB, MM/MC, OPT, COAX, BALANCE, ANALOG
etc.
Support SW balance, unbalance output; Support double line crossover
that favors audiophiles.
Adopts the well known full balance amplifier circuit design, provide
enjoyable sound quality.
Adopts 860W big toroidal transformer and up to 120,000uF customize
capacitors, uses 24pcs Toshiba transistors to guarantee enough power
drive, can match with different world high end speakers.
Internal mechanical design with independent and shield cabinets, makes
nearly 0 ground noise.

Parameters:
SN: 100dB (A weighted)
Frequency response: 15HZ-95KHZ (+1/-3dB)
Distortion: 0.05% (1KHz, normal working condition)
Gain: 40dB+/-1dB.
Power: 200W( THD:1%, 1KHz, 8 , 1 channel)
Rated loaded Impedance: 8
Class A mode static power consumption:260W~320W
Class AB mode static power consumption:70W~110W
Standby power consumption: 0.5W
Power supply: ~110V/60HZ
~220V/50HZ
N.W: 36KGS
Unit Size: 444x460x254 mm (WxDxH)


NUOVO

VALUTIAMO PERMUTE

*Worldwide shipping available*
