Margules U280 SC
Amplificatori Finali
|
 |
|
|
|
|
|
|
|
|
VENDO
USATO
|
|
|
|
|
|
|
|
PREZZO RICHIESTO:
|
€ 1.700,00
|
|
|
|
|
|

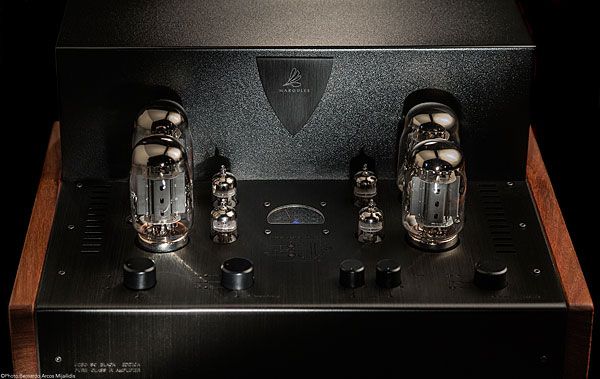

Margules U280 SC
|
|
Inserito IL 26/10/2025 da LUCIANO FRANCO di Milano (MI):
|
|
Description: Tubed stereo power amplifier, strappable for mono, with
selectable output transformer taps (8, 4, or 2 ohms) and modes
(Ultralinear, Triode). Tube complement: four 12AU7, four KT88 (or 6550,
KT99, KT100, KT120, KT150). All measurements at 8 ohms 1 khz input
voltage 127V AC. Rated power output before clipping: stereo mode,
50Wpc Ultralinear (17dBW), 25Wpc Triode (14dBW); monoblock mode,
100W Ultralinear (20dBW), 55W Triode (17.4dBW); Inputs: 1 pair
unbalanced (RCA). Outputs: 2 pairs binding posts. THD at 7V RMS
output: 0.08%. Power consumption: 170W idle, 585W maximum at 127V
AC. Input impedance at 1kHz, stereo: 180k ohms. Triode: input voltage
for maximum output at 8 ohms, 0.6V (gain: 28dB). Ultralinear mode:
input voltage for maximum output, 0.5V (gain: 32dB). Input impedance
at 1kHz, monoblock mode: 100k ohms. Triode mode: input voltage for
maximum output, 0.6V (gain: 30dB). Ultralinear mode: input voltage for
maximum output, 0.45V (gain: 35dB).
Dimensions: 17.7" (450mm) W by 8.7" (220mm) H by 13.8" (350mm) D.
Weight: 67.25 lbs (30.5kg).
Finish: Black, wooden side panels.
Prezzo Originale: $ 10860
|
|
|
|
|
|
|
|
|
GARANZIA
|
|
Non in garanzia
|
|
SPEDIZIONE
|
|
Non Specificata
|
|
PREZZO SPEDIZIONE
|
|
Non Specificato
|
|
|
|
|
|
Contatta subito LUCIANO FRANCO
|
|
|
|
|
|
|
