Inserito IL 18/10/2025 da CP HIFI DEALS di Catania (CT):

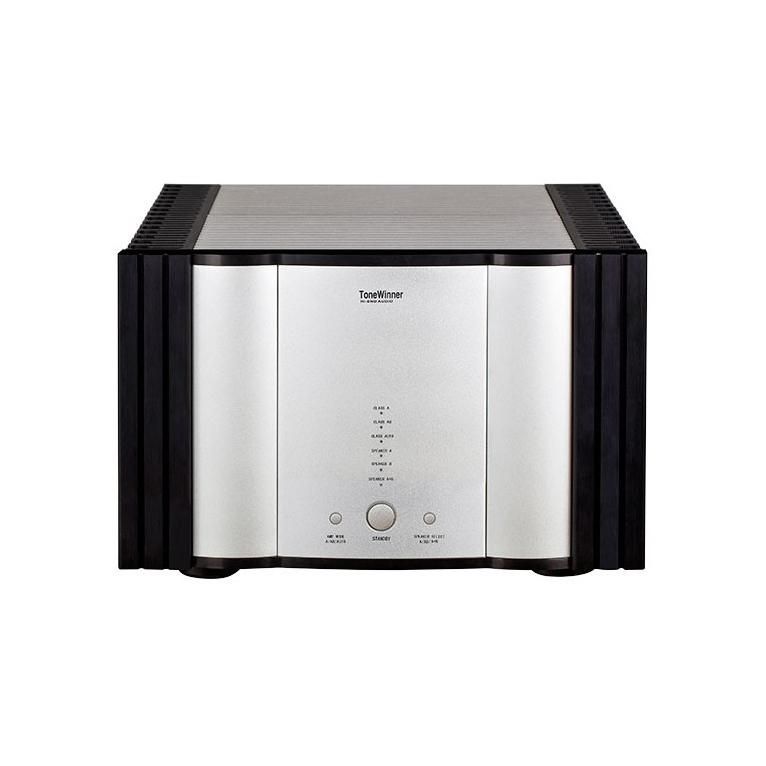

ToneWinner - Finale di Potenza - AD-1PA+ "NEW RELEASE"
Class A amplifier circuit design, adopts full balance, full symmetry, differential input to differential BTL (bridge) power output. Power of the amp circuit can switch high/low voltage automatically. ~110V/~220V power auto switch for the whole machine. 1200W toroidal transformer and up to 180,000uF capacitors. Perfect amp protecting circuits (short protect/ overheat protect and DC protect) Class A and Class AB auto (manual) switch. Class A/ClassB/ClassAB amplifier output modes. Mechanical chassis design with independent and shield cabinets for power supply and amplifier modules, to keep low interference and high distortion. SN: 108dB (A weighted, bal input) 115dB (A weighted, unbal input) THD: 0.008% (1KHz) Frequency response: 10HZ-100KHZ (+1/-3dB) Gain: 29.5dB+/-1dB. Power: 2x300W/CH (8 ) Impedance: 8 Standby power consumption: 1W Power supply: ~110V/60HZ ~220V/50HZ N.W: 42KGS Size: 444x294x449 mm
