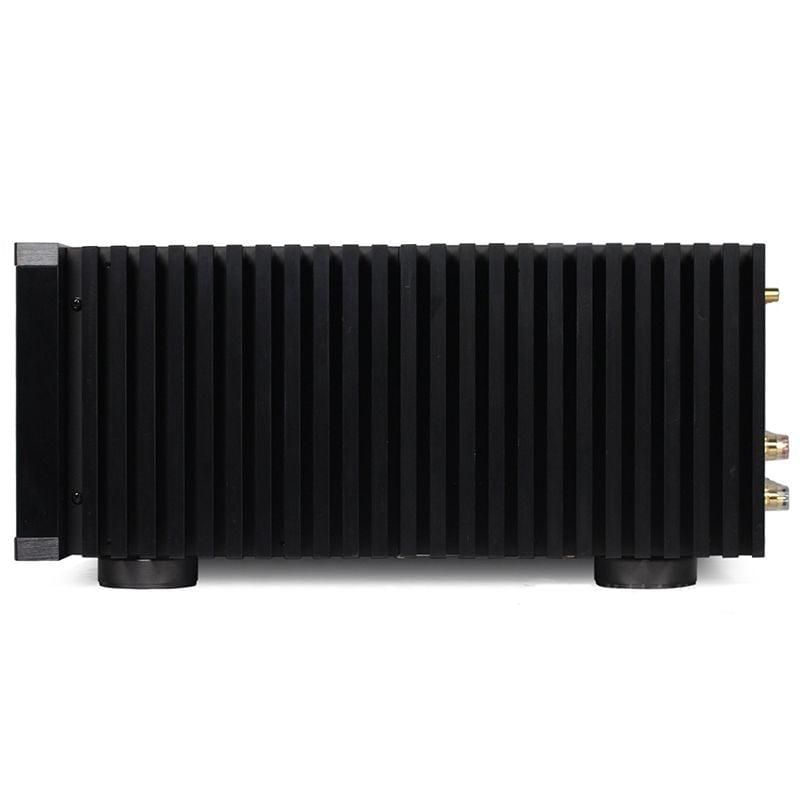

ToneWinner-Finale Multicanale-AD-7300PA+

ToneWinner - Finale Multicanale Stato Solido - AD-7300PA+
Topology: Fully discrete, dual differential, high current, short signal path
Class A/B - Class "H" power supply.
Numbers of Channel: 7 Channels - High powered single channel modules.
Power Output: ( Rated Power; THD <0.1% 240V (Tested AC 240V) -
(AC 240V Will Increase the output wattage and maintain the THD<0.1%.)
324 watts RMS/channel; 20 Hz 20 kHz; THD<0.1%; 8 Ohms; one
channel driven.
584 watts RMS/channel; 20 Hz 20 kHz; THD<0.1%; 4 Ohms; one
channel driven.
307 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
500 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
190+ watts RMS/channel; THD<0.1%; 8 Ohms; all Seven channels
driven.
Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / 0.1
dB).
Broad-Band Frequency Response: 10 Hz to 70 kHz +0/-2 dB.
THD + noise: < 0.006%; at 100 watts RMS; 1 kHz; 8 Ohms.
Signal to Noise Ratio (8 Ohm load):
> 106 dB; ref FTC rated power; unbalanced input (A-weighted).
> 91 dB; ref 1 watt; unbalanced input (A-weighted).
Minimum Recommended Load Impedance (per channel): 4 Ohms (which
equals one 4 Ohm load or two paralleled 8 Ohm loads).
Damping Factor (8 Ohm load): > 149.
Input Sensitivity (for rated power; 8 Ohm load): 1.5 V.
Gain: 28 dB.
Maximum Power Consumption: 2056 watts at 120V & 1128W at 240V
Power Supply: 110V-240V- 15 Amps-20 Amps Auto Switching Class
"H"Power Supply.
Material: Aluminum

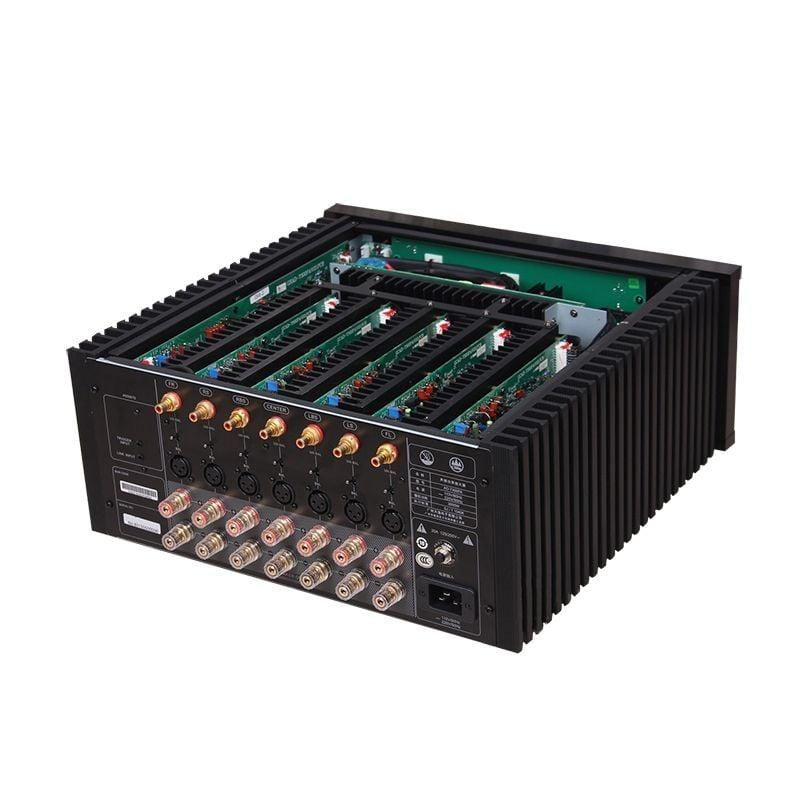

Modules: Separate Heatsinks for individual modules.
Color: Black

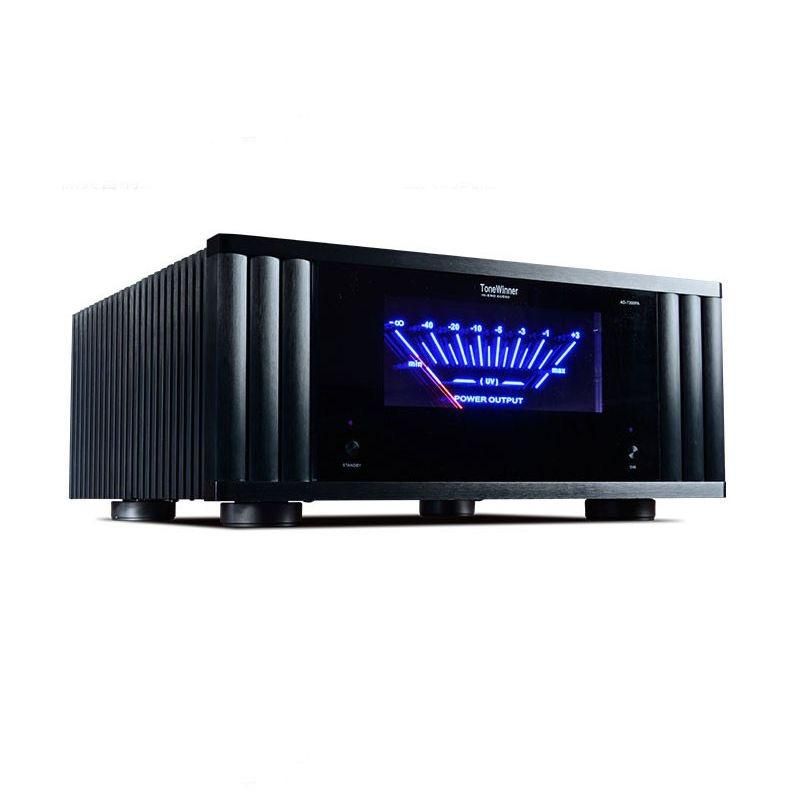

Front Panel: Analogue meter with blue LED lights and Red Needle.
Dimensioni: 45 x 44 x 20 cm
Peso: 25 kg.

NUOVO


VALUTIAMO PERMUTE

*Worldwide shipping available*
